W type air cooling medium high pressure series
Model：W
24 hours non-stop overload design
W type 3 cylinder
Unique double cantilever structure,energy saving and low noise.
Product characteristics
- 24 hours non-stop overload design
- W type 3 cylinder
- Unique double cantilever structure,have the effect of heavy load capacity,steady,energy saving and low noise
- Original Sandvik 7C27M02 valve plate,have the longer using time.
- Original Imported piston ring,have the effect of less oil consumption and longer using time.
- Patented crankshaft case breathing system,ensuring the breathing cap do not have oil discharging
- New machine design,less vibration and more stable
- More choice,Single or muti machine linkage
Technical parameter：
|
Model |
Type |
FAD Nm3/min |
Pressure MPa |
Mptor KW |
Size L×W×H mm |
Weight KG |
Note |
|
WM-0.65/30 |
3 cylinder 2 stage |
0.65 |
3.0 |
7.5 |
1300×600×800 |
300 |

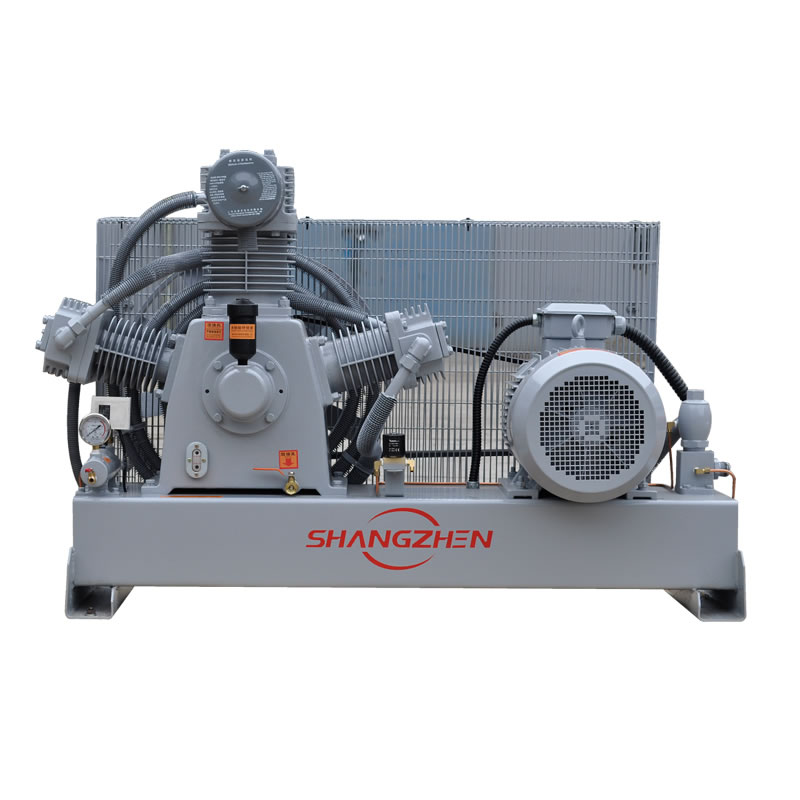

Horizontal |
|
WM-0.65/30-C |
0.65 |
7.5 |
1500×600×1200 |
400 |

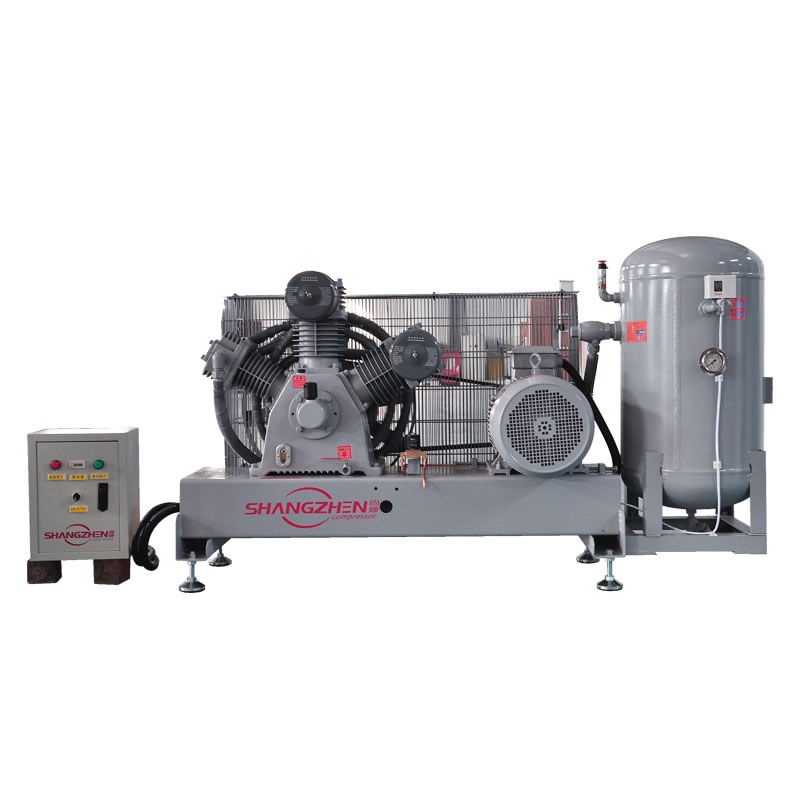

Horizontal with tank |
||
|
WM-1.0/30 |
1.0 |
11 |
1400×700×900 |
420 |
Horizontal |
||
|
WM-1.0/30-C |
1.0 |
11 |
1700×700×1200 |
550 |
Horizontal with tank |
||
|
WM-1.2/30 |
3 cylinder 3 stage |
1.2 |
15 |
1400×700×900 |
430 |
Horizontal |
|
|
WM-1.2/30-C |
1.2 |
15 |
1700×700×1200 |
560 |
Horizontal with tank |
||
|
WM-1.6/30 |
3 cylinder 2 stage |
1.6 |
18.5 |
1800×900×1200 |
550 |
Horizontal |
|
|
WM-2.0/30 |
2.0 |
22 |
1800×900×1200 |
580 |
Horizontal |
||
|
2-WM-2.0/30 |
2.0 |
11×2 |
2000×950×1500 |
1000 |

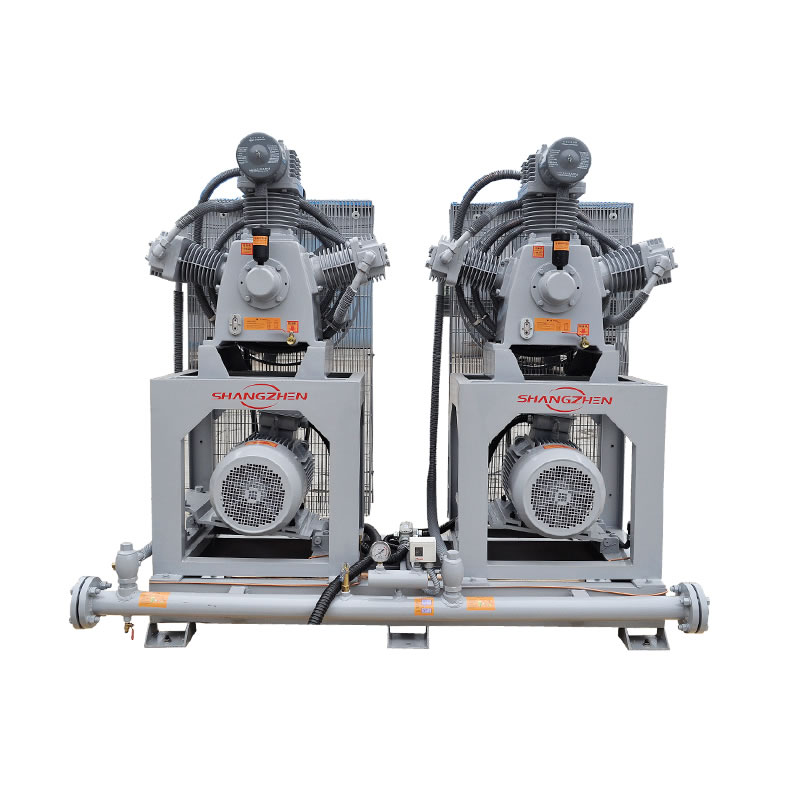

Double Vertical |
||
|
2-WM-2.4/30 |
3 cylinder 3 stage |
2.4 |
15×2 |
2000×950×1500 |
1050 |
||
|
2-WM-3.2/30 |
3 cylinder 2 stage |
3.2 |
18.5×2 |
2400×950×1650 |
1150 |
||
|
2-WM-4.0/30 |
4.0 |
22×2 |
2400×950×1650 |
1200 |
|||
|
3-WM-3.0/30 |
3.0 |
11×3 |
3000×950×1500 |
1500 |

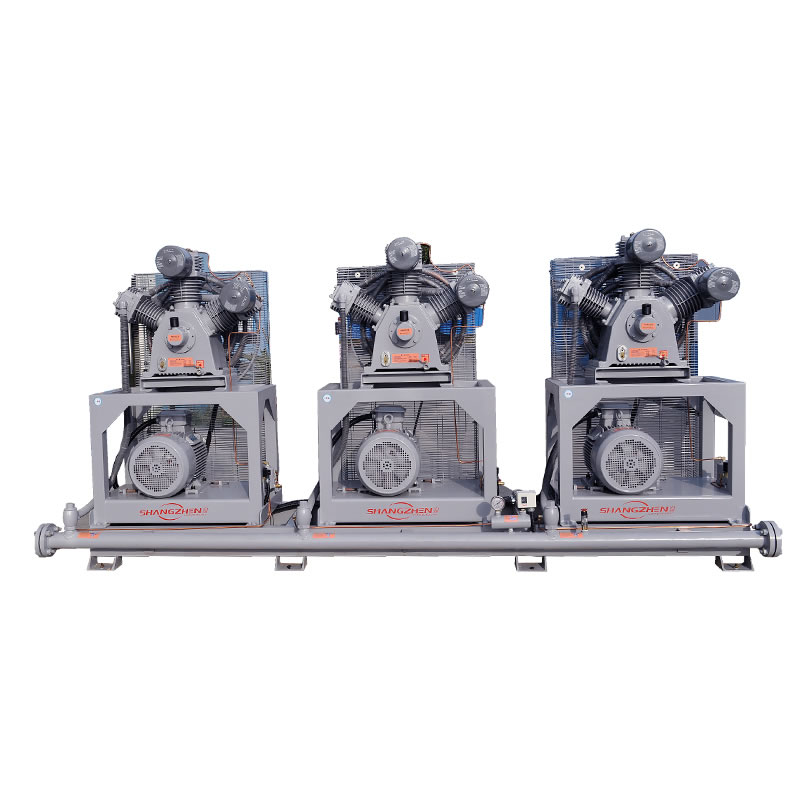

Three Vertical |
||
|
3-WM-3.6/30 |
3 cylinder 3 stage |
3.6 |
15×3 |
3000×950×1500 |
1600 |
||
|
3-WM-4.8/30 |
3 cylinder 2 stage |
4.8 |
18.5×3 |
3600×950×1650 |
1800 |
||
|
3-WM-6.0/30 |
6.0 |
22×3 |
3600×950×1650 |
1900 |
Notes：
1、Performance parameters measured according to ISO2017,reference conditions:inlet temperature 20℃,inlet pressure 1barA
2、Our company reserves the right to continuing improve the technology,parameter change without prior informed
3、Special models could be customized.
